Over 20 different models of large die-sinking EDM machines

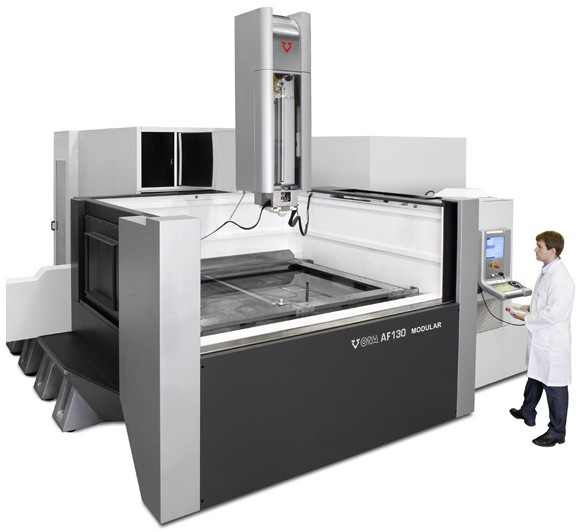

• The large scale ONA AF MODULAR series, uses a modular design to allow many configurations. Each customer can configure, with a great flexibility, the machine that meets his exact requirements.
• This new series utilizes pre-built axes modules to drastically reduce machine assembly time.
• Each customer can get a custom system for the same price and lead time as a standard machine.

Manifold configurations of X-Y-Z travels

• X travel: 800, 1000, 1500 or 2000 mm.
• Y travel: 600, 800, 1000 or 1300 mm.
• Z travel: 500, 600 or 700 mm.

Highly rigid mechanical structure

• Constructed of stabilized fine grained cast iron blended with graphite.
• Fixed bedframe machine.
• That allows work pieces up to 10.000 kg.

Maximum productivity

The new ONA AF MODULAR machines are noted for the high cutting speed (450 mm2/minute with wire of 0.33 mm diameter and 370 mm2/minute with wire of 0.30 mm diameter) and low maintenance costs, thanks to the ecological filtration system, ONA AquaPrima, which does not require replaceable cartridges.

Surface integrity 100% preserved

The ONA AF MODULAR series includes the ONA Easycut generator, which provides a cut that is 100% free from electrolyte corrosion, without affecting the speed, and while preserving the surface integrity of the material being cut  (best surface finish: 0.2 µm Ra – 6 VDI).

6 axes controlled by the CNC

The AF MODULAR models incorporate the latest generation CNC, ONA-W64, able to control 6 axes, 5 of them (B, X, Y, U, V) at the same time, enabling the machine to incorporate a rotation axis which is totally controlled by the CNC.

Specifications
